These bits are excellent for making through mortises. Use a straight bit (#711.130.11) to groove the through mortise area, then use the drill bit (#517.130.31) to bore a through hole at the end of the groove. Turn the workpiece over to end the mortise. Use the flush trim bit with a cutting length slightly longer than the fillet, following the groove made on the opposite side of the workpiece with the ball bearing guide.

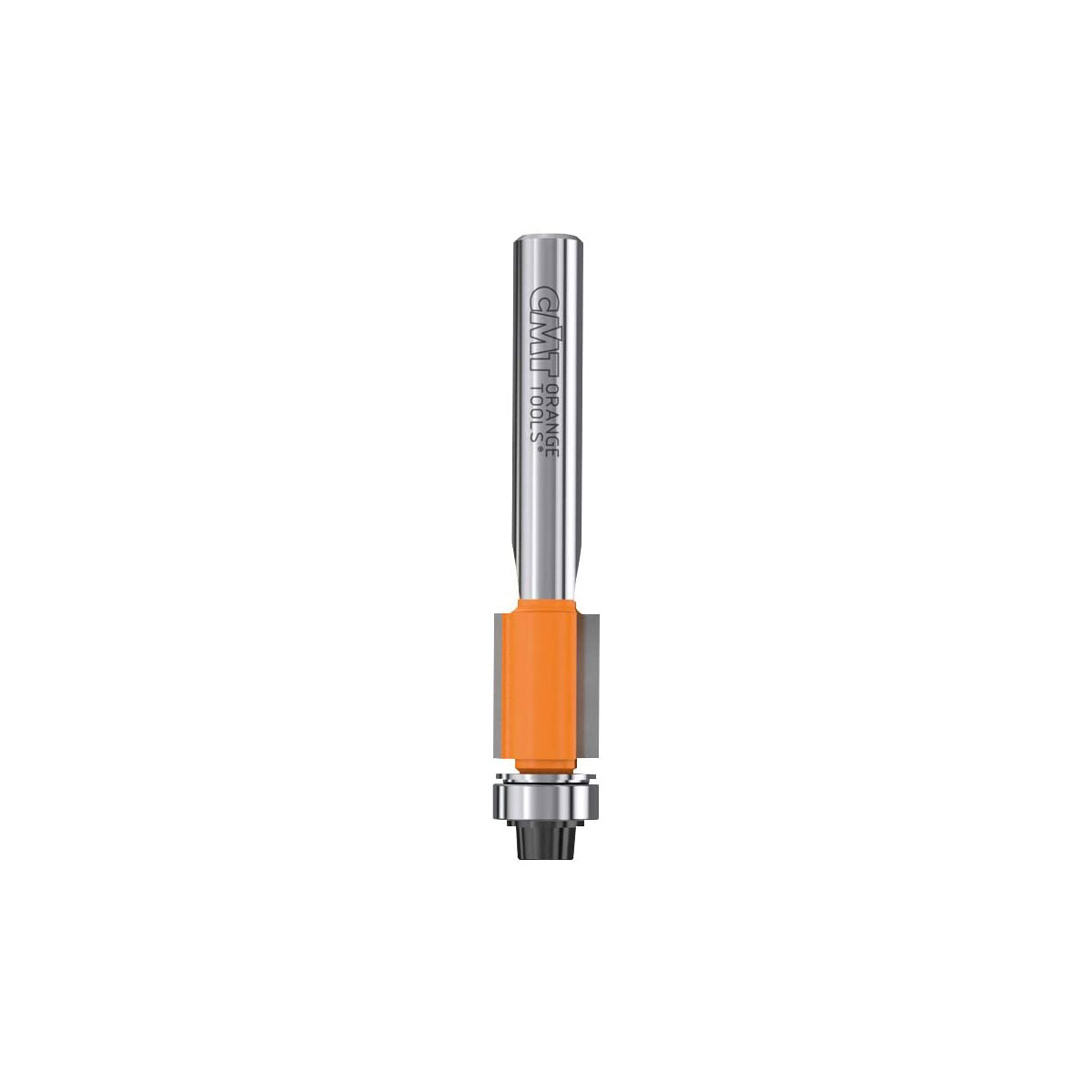

CMT FLUSH TRIM ROUTER BIT
Carbide tipped router bit with 2 cutting edges and bearing for template work.
Fatigue Proof steel body with PTFE non-stick coating
Precision work on laminates and wood, or for quick template work with excellent finish results
1/4 inch shank, 3/8 inch cutting diameter and 1/2 inch cutting height
2 3/16 inch overall length and right hand rotation
