The BCS allows for the connection of (2) 2x’s to a 4x post or (3) 2x’s to a 6x post. Double-shear nailing between beam and post gives added strength. The BC series offers dual-purpose post cap/base for light cap or base connections.

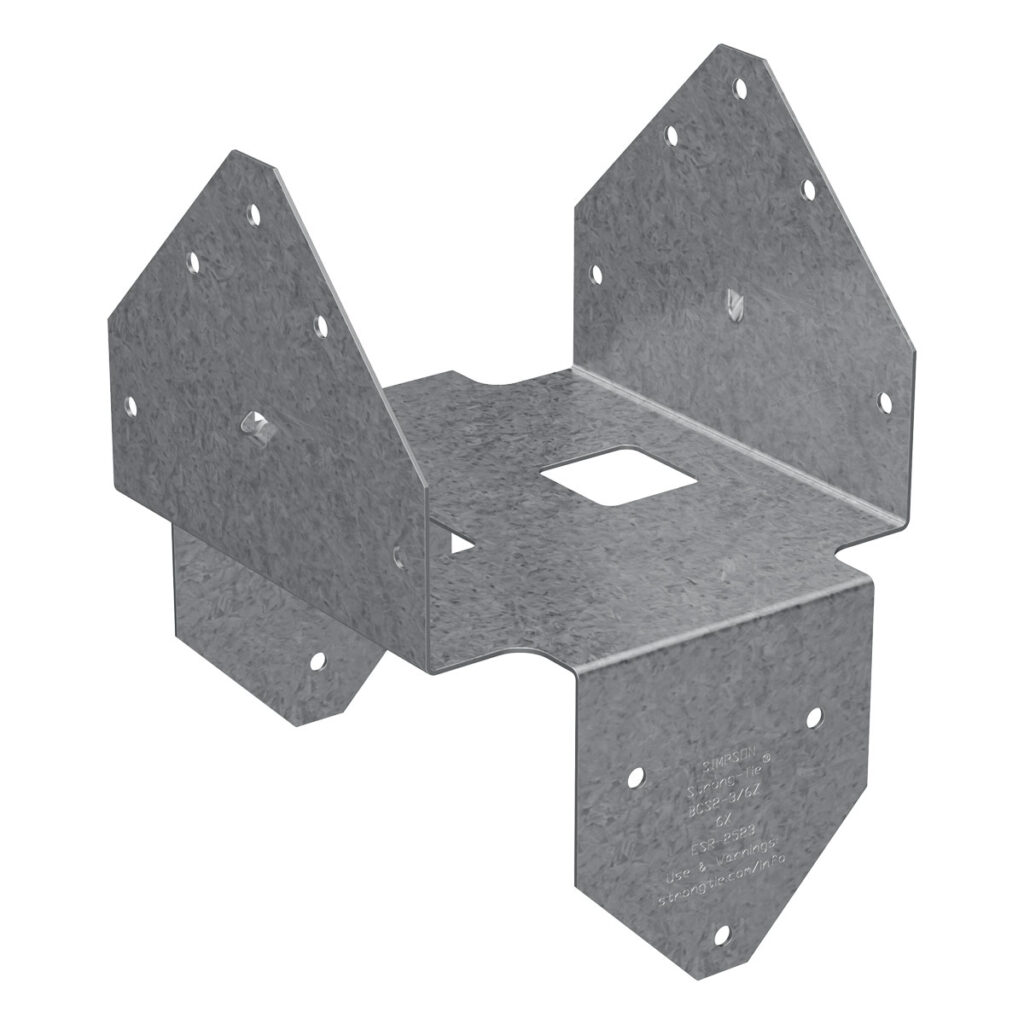

BCS 3 IN. X 6 IN. GALVANIZED DOUBLE POST CAP/BASE
• Use all specified fasteners; see General Notes
• Do not install bolts into pilot holes
• BCS — install dome nails on beam; drive nails at an angle through the beam into the post below to achieve the table loads
• BC — install with 0.162″ x 3 1/2″ nails or 0.162″ x 2 1/2″ joist hanger nails
• Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non-top-supported installations (such as fences or unbraced carports)
• To tie multiple 2x members together, the Designer must determine the fasteners required to join members to act as one unit without splitting the wood
